Storage

Backups can be easily viewed and either restored, downloaded for storage elsewhere, or deleted. All backups are encrypted and securely stored in the Loadbalancer.org ADC Portal.

To access storage:

  1. Click LOADBALANCER | PORTAL in the main menu bar to view the Dashboard.

  2. In the Storage panel:

    • If there are currently no backups, click Create a backup.

      • The Create Schedule form will be displayed. For more details, see Task Scheduler.

    • If backups already exist, click View my Backups.

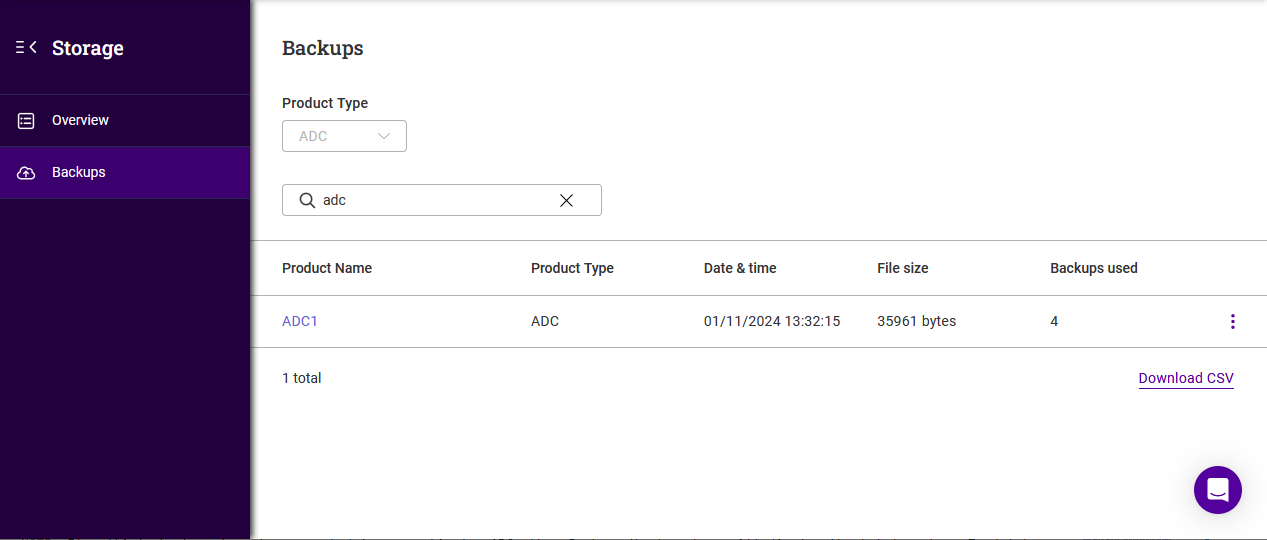

  3. Existing backups will be listed:

    storage

  4. In this example, 4 backups have been created for ADC1.

  5. To view all backups, click on the Product name, is this case ADC1.

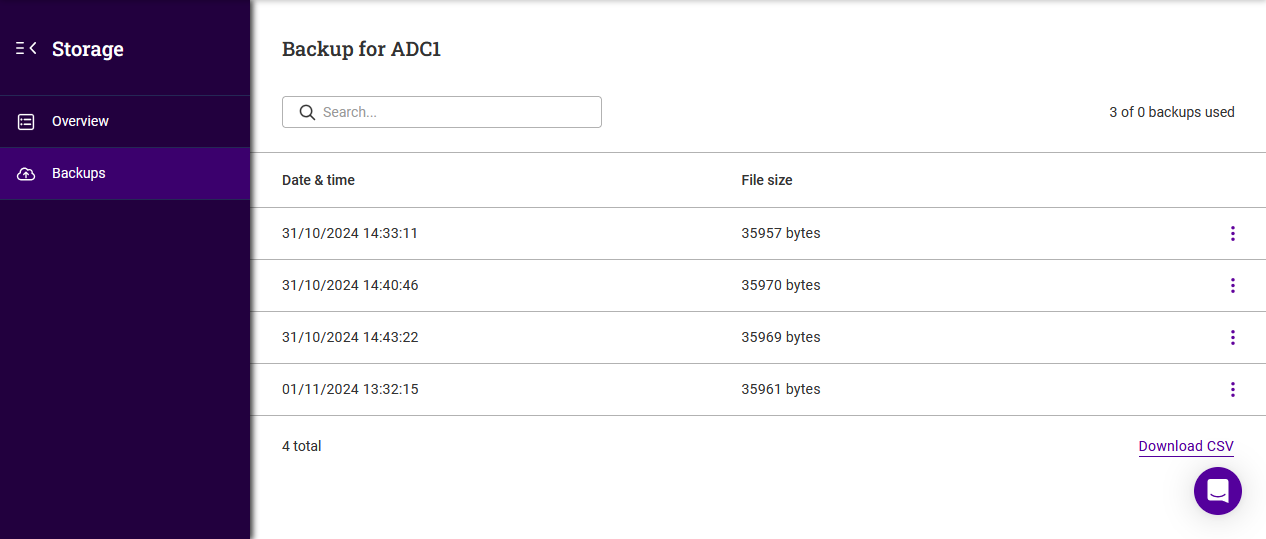

  6. Details of all backups will be displayed.

    storage2

To download a backup:

  1. Click the three dots menu next to the backup to be downloaded.

  2. Select Download.

  3. Enter your password in order to decrypt and download the backup and click Submit.

  4. Note the Backup Archive Password (ADC appliance ID) that is displayed on screen. This is required as a password for the encrypted file.

To delete a backup:

  1. Click the three dots menu next to the backup to be deleted.

  2. Click Delete, then click Confirm to delete the backup.
