Manage ACL Rules

By default, an ACL is automatically configured when a Virtual Service is created. This links the frontend to the backend.

Additional ACLs can be created to control and direct traffic based on a set of defined rules. This functionality is also known as URL rewriting, URL redirection, URL forwarding or content switching.

ACLs are read as a sentence: from a frontend, if a part of the request matches (or does not match) a value, then an action is taken. Some match types and actions depend on information from the application layer and so are only available for HTTP mode (Layer 7) Virtual Services.

Layer 4 Virtual Services can only have a single ACL rule (the default rule that links the frontend to its backend). The full range of match types and actions described below applies to Layer 7 (HTTP mode) Virtual Services.

URL-Based ACLs

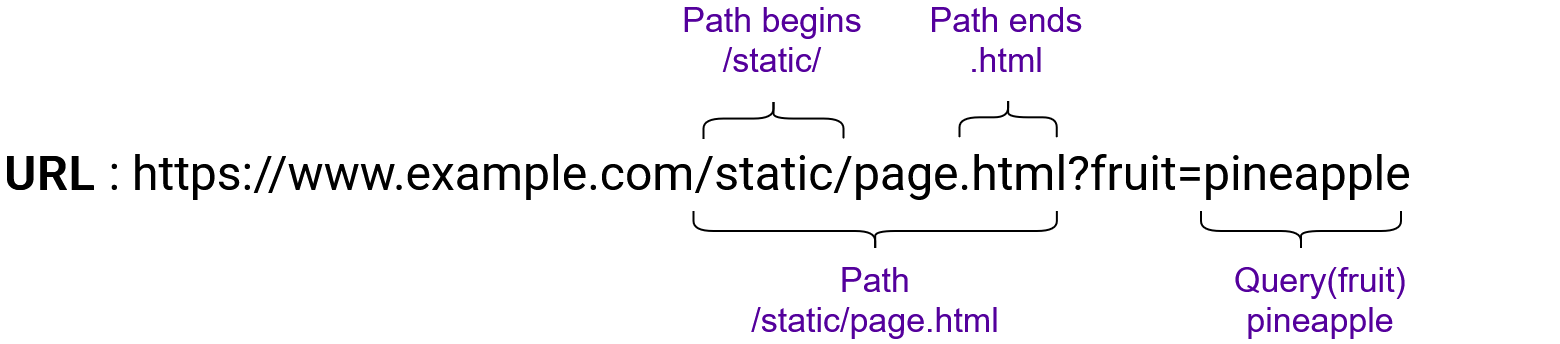

The following image describes the various parts of the URL:

Header-Based ACLs

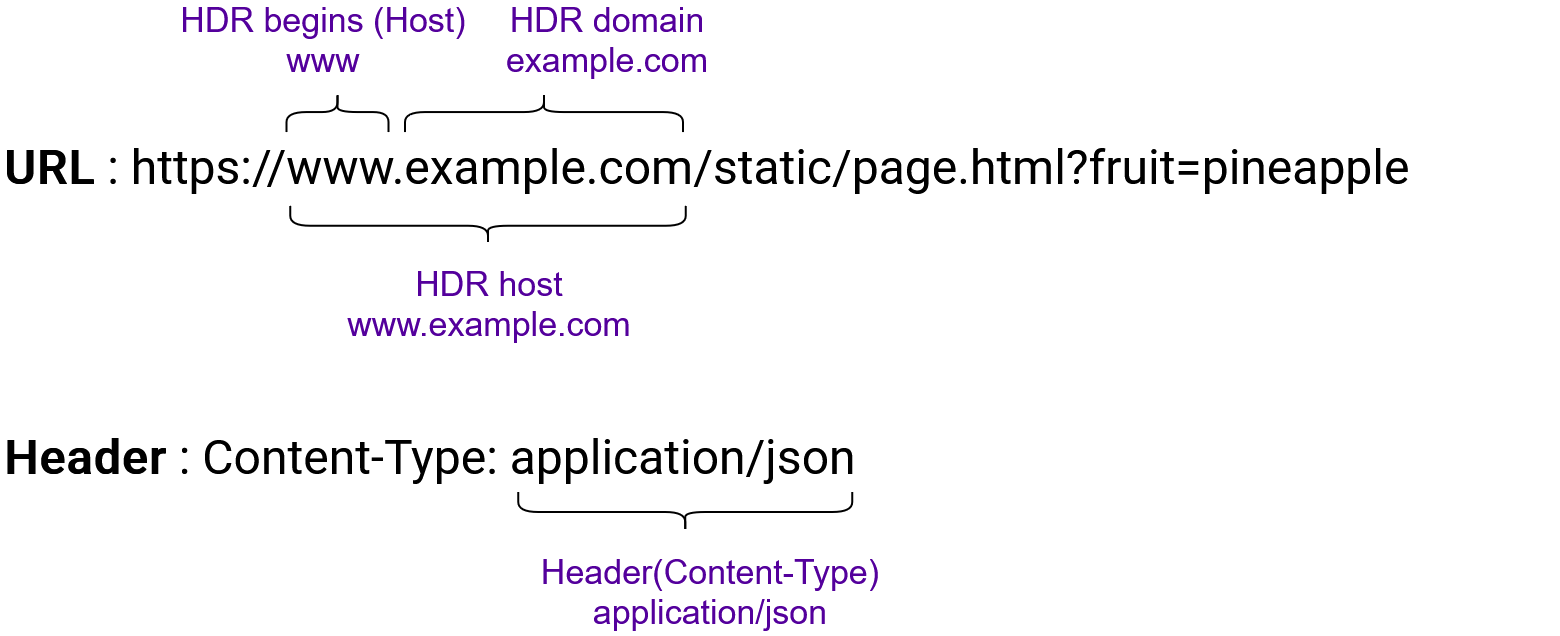

The following image describes the various header types:

Adding an ACL Rule

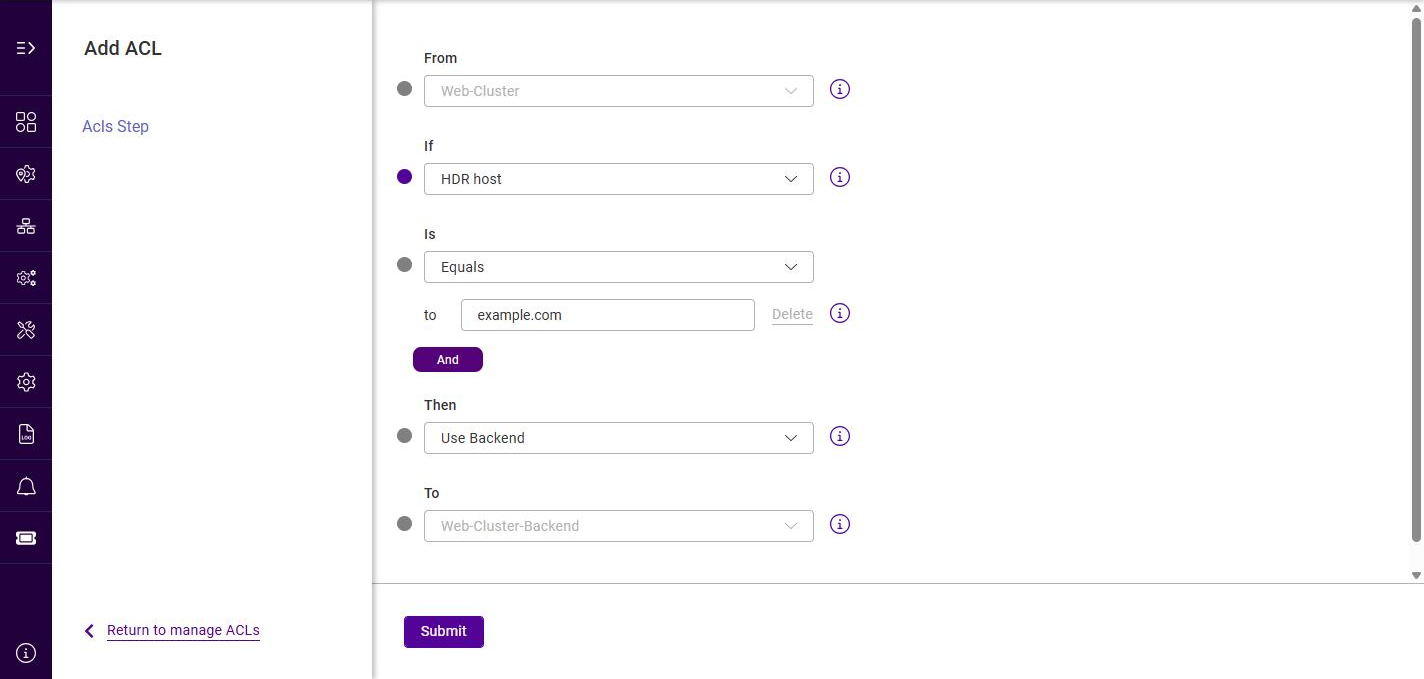

To add a new ACL:

Using the WebUI, navigate to Cluster Configuration > Manage ACL rules.
Either:
- Click the frontend where you’d like to add ACL(s), e.g. Web-Cluster, then click Add ACL, or
- Click Add ACL, then using the From dropdown, select the relevant frontend, e.g. Web-Cluster.
Using the If dropdown, select the match type to test the request against (see section_acl_match_types).
For the Custom HDR begins, HDR, Query, URL parameter and Response header types, a Header/param field is shown - enter the name of the header or parameter to match against, e.g. Content-Type.
Using the Is dropdown, select the condition:

Condition Description

Equals

Perform the action if the request matches the value entered.

Not Equals

Perform the action if the request does not match the value entered.
Enter the value to match against in the to field, e.g. example.com.
To require more than one condition for the same rule, click And and add a further match. Use the Delete link next to a match to remove it.
Using the Then dropdown, select the action to take (see section_acl_actions).
Depending on the action selected, complete the additional field(s) shown - for example, choose the target backend from the To dropdown, or enter a URL, header value or server name in the value field.
Click Submit.

Condition	Description
Equals	Perform the action if the request matches the value entered.
Not Equals	Perform the action if the request does not match the value entered.

ACL Match Types (the If dropdown)

The match types available in the If dropdown are listed below. The Header/param column indicates whether a header or parameter name must also be supplied.

Match type Description Header/ param Example value

Match type	Description	Header/ param	Example value
IP Address or CIDR	Match against the source IP address of the request. CIDR notation and multiple comma-separated values may be used.	No	`10.10.1.0` or `10.1.0.0/16`
Port	Match against the destination TCP port of the request.	No	`8080`
Always False	A condition that never matches. Useful for temporarily disabling a rule.	No	-
Default	The default rule, applied when no other ACL matches. Typically routes to the default backend.	No	(N/A)
Path begins	Match against the beginning of the request’s URL path.	No	`/example`
Path substring	Match against any substring within the request’s URL path.	No	`/example`
Path ends	Match against the end of the request’s URL path.	No	`.png`
Path regex	Match the request’s URL path against a regular expression.	No	`^/api/.*`
Path	Match against the request’s full URL path (from the first slash up to the optional question mark that begins the query string).	No	`/`
HDR host	Match against the request’s full Host header.	No	`example.com`
HDR begins (Host)	Match against the beginning of the request’s Host header.	No	`www`
Custom HDR begins	Match against the beginning of a named request header.	Yes	`www`
HDR domain	Match against the domain portion of the request’s Host header.	No	`example.com`
HDR	Match against a named request header.	Yes	`application/json`
Query	Match against a named query-string parameter.	Yes	`URL/Text`
URL parameter	Match against a named URL parameter.	Yes	`key=value`
HTTP method	Match against the request’s HTTP method.	No	`GET`
Response status	Match against the HTTP status code of the response.	No	`200`
Response header	Match against a named response header.	Yes	`application/json`
Response cookie	Match against a response cookie.	No	`session`

IP Address or CIDR

Match against the source IP address of the request. CIDR notation and multiple comma-separated values may be used.

10.10.1.0 or 10.1.0.0/16

Port

Match against the destination TCP port of the request.

8080

Always False

A condition that never matches. Useful for temporarily disabling a rule.

Default

The default rule, applied when no other ACL matches. Typically routes to the default backend.

(N/A)

Path begins

Match against the beginning of the request’s URL path.

/example

Path substring

Match against any substring within the request’s URL path.

/example

Path ends

Match against the end of the request’s URL path.

.png

Path regex

Match the request’s URL path against a regular expression.

^/api/.*

Path

Match against the request’s full URL path (from the first slash up to the optional question mark that begins the query string).

/

HDR host

Match against the request’s full Host header.

example.com

HDR begins (Host)

Match against the beginning of the request’s Host header.

www

Custom HDR begins

Match against the beginning of a named request header.

Yes

www

HDR domain

Match against the domain portion of the request’s Host header.

example.com

HDR

Match against a named request header.

Yes

application/json

Query

Match against a named query-string parameter.

Yes

URL/Text

URL parameter

Match against a named URL parameter.

Yes

key=value

HTTP method

Match against the request’s HTTP method.

GET

Response status

Match against the HTTP status code of the response.

200

Response header

Match against a named response header.

Yes

application/json

Response cookie

Match against a response cookie.

session

ACL Actions (the Then dropdown)

When a rule matches (or, with Not Equals, does not match), the selected action is taken. The action’s target - a URL, IP, backend/real server name or header value - is entered in the value field unless noted otherwise.

Action	Description	Additional fields
None	No action is taken when the rule matches.	-
Drop	Stop and immediately close the connection without sending a response.	-
TCP Reject	Immediately close the TCP connection by sending a TCP Reset (RST) packet, causing the client to fail instantly.	-
Use Backend	Use the specified backend, or another Virtual Service, to handle the request.	Select the target from the To dropdown.
Use Server	Use the specified real server to handle the request.	Enter the server name in the value field.
Capture Header	Capture the contents of a named request header so that it is recorded in the logs.	Redirect param (header name, e.g. X-Custom-Header) and Capture length (maximum characters to capture, default 64).
Deny	Stop and immediately deny the request, returning the chosen HTTP status code as a response.	Redirect with code (HTTP status code - see section_acl_deny_codes).
URL location	Redirect the request to the exact location specified, using a 301 Moved Permanently status code.	-
URL prefix	Redirect the request to the URL path originally requested, prefixed with the specified string, using a 301 Moved Permanently status code.	-
HTTPS	Perform a trivial HTTP-to-HTTPS redirect.	-
Set Path	Rewrite the path of the request to the value specified.	-
Response Redirect	Return an HTTP redirect response to the location specified.	-
Set Request Header	Set (or add) a request header before the request is forwarded.	Redirect param (header name); enter the header value in the value field.
Replace Path	Replace the request’s URL path with the value specified.	Redirect param (the path or expression to match).

Action

Description

Additional fields

None

No action is taken when the rule matches.

Drop

Stop and immediately close the connection without sending a response.

TCP Reject

Immediately close the TCP connection by sending a TCP Reset (RST) packet, causing the client to fail instantly.

Use Backend

Use the specified backend, or another Virtual Service, to handle the request.

Select the target from the To dropdown.

Use Server

Use the specified real server to handle the request.

Enter the server name in the value field.

Capture Header

Capture the contents of a named request header so that it is recorded in the logs.

Redirect param (header name, e.g. X-Custom-Header) and Capture length (maximum characters to capture, default 64).

Deny

Stop and immediately deny the request, returning the chosen HTTP status code as a response.

Redirect with code (HTTP status code - see section_acl_deny_codes).

URL location

Redirect the request to the exact location specified, using a 301 Moved Permanently status code.

URL prefix

Redirect the request to the URL path originally requested, prefixed with the specified string, using a 301 Moved Permanently status code.

HTTPS

Perform a trivial HTTP-to-HTTPS redirect.

Set Path

Rewrite the path of the request to the value specified.

Response Redirect

Return an HTTP redirect response to the location specified.

Set Request Header

Set (or add) a request header before the request is forwarded.

Redirect param (header name); enter the header value in the value field.

Replace Path

Replace the request’s URL path with the value specified.

Redirect param (the path or expression to match).

Deny - Redirect with Code

When the Deny action is selected, the Redirect with code dropdown sets the HTTP status code returned to the client. The available codes are: 200 OK, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 404 Not Found, 405 Method Not Allowed, 407 Proxy Authentication Required, 408 Request Timeout, 410 Gone, 425 Too Early, 429 Too Many Requests, 500 Internal Server Error, 502 Bad Gateway, 503 Service Unavailable and 504 Gateway Timeout.

Modifying or Deleting an ACL Rule

To change or remove an existing ACL:

Using the WebUI, navigate to Cluster Configuration > Manage ACL rules.
Click the frontend whose ACLs you want to manage, e.g. Web-Cluster. The Manage <frontend> ACL page lists each rule with its Path Type, Condition, Value, Redirect, Location and Code.
Click the actions (⋮) menu at the end of the relevant row and choose:
- Edit - reopens the rule in the ACL editor so that any of its settings can be changed. Click Submit to save.
- Delete - removes the rule.

Layer 4 frontends can only have a single ACL rule, so additional rules cannot be added to them.

ACL Examples

Example 1

A Virtual Service occasionally sees requests for a retired domain, www.foo.com. These requests need to be redirected to the new domain: www.bar.com. For example, a request for https://www.foo.com/static/diagram.svg must be redirected to https://www.bar.com/static/diagram.svg.

Match type to use: HDR host, with the condition Equals and the value www.foo.com.
Action to use: URL prefix, with the prefix https://www.bar.com.

Example 2

A web service has been moved: previously, all of its resources were located under /web-service/, but now everything is located under /legacy/web-service/. Any requests for old locations, whose paths start with /web-service/, must be redirected to the correct new locations.

Match type to use: Path begins, with the condition Equals and the value /web-service/.
Action to use: URL prefix, with the prefix /legacy.

Example 3

It’s necessary to force the use of a particular real server in some scenarios. This must be achieved by setting a particular query-string parameter to the name of the server. For example, http://192.168.0.10/?server_override=apache_srv_dev should trigger the override condition and send the request to the chosen server.

Match type to use: Query, with the Header/param set to server_override, the condition Equals and the value apache_srv_dev.
Action to use: Use Server, with the server name apache_srv_dev.
